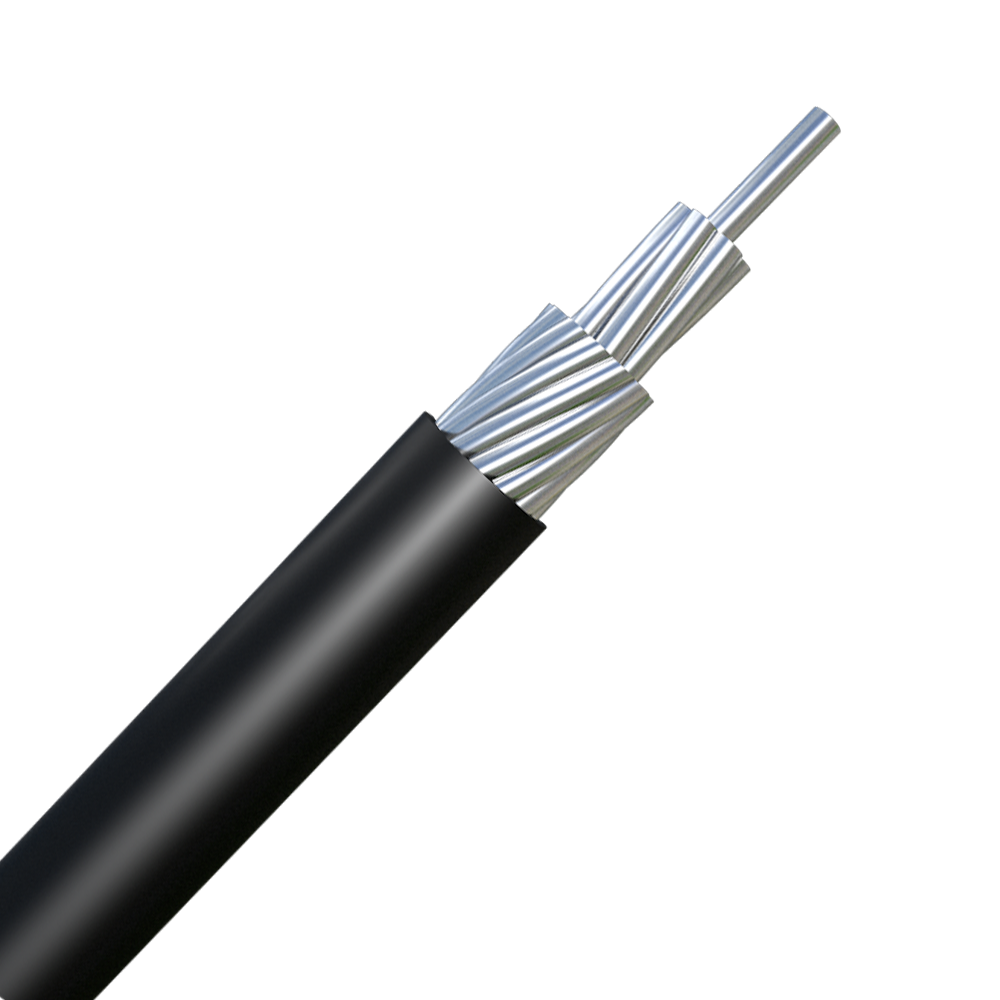

The 0.6KV overhead insulated cable is an overhead wire with an insulating layer. Conductors generally use AAC, AAAC, ACSR twisted wires. The insulating material is mostly 70°C weather-resistant PE or 90°C XLPE, and weather-resistant PVC can also be used as the insulating material.
Features
1.Good insulation performance
2.Good anti-corrosion performance
3.Anti-external damage
The strength meets the requirements. Compared with ordinary overhead bare wires, it can solve some difficulties encountered in the operation of conventional bare wires. The price is much cheaper than buried cables.
Application
Generally used for urban and rural power grid transformation, road lighting and other lines. It is suitable for places with more lightning, dense trees, and high smoke concentration..
Construction

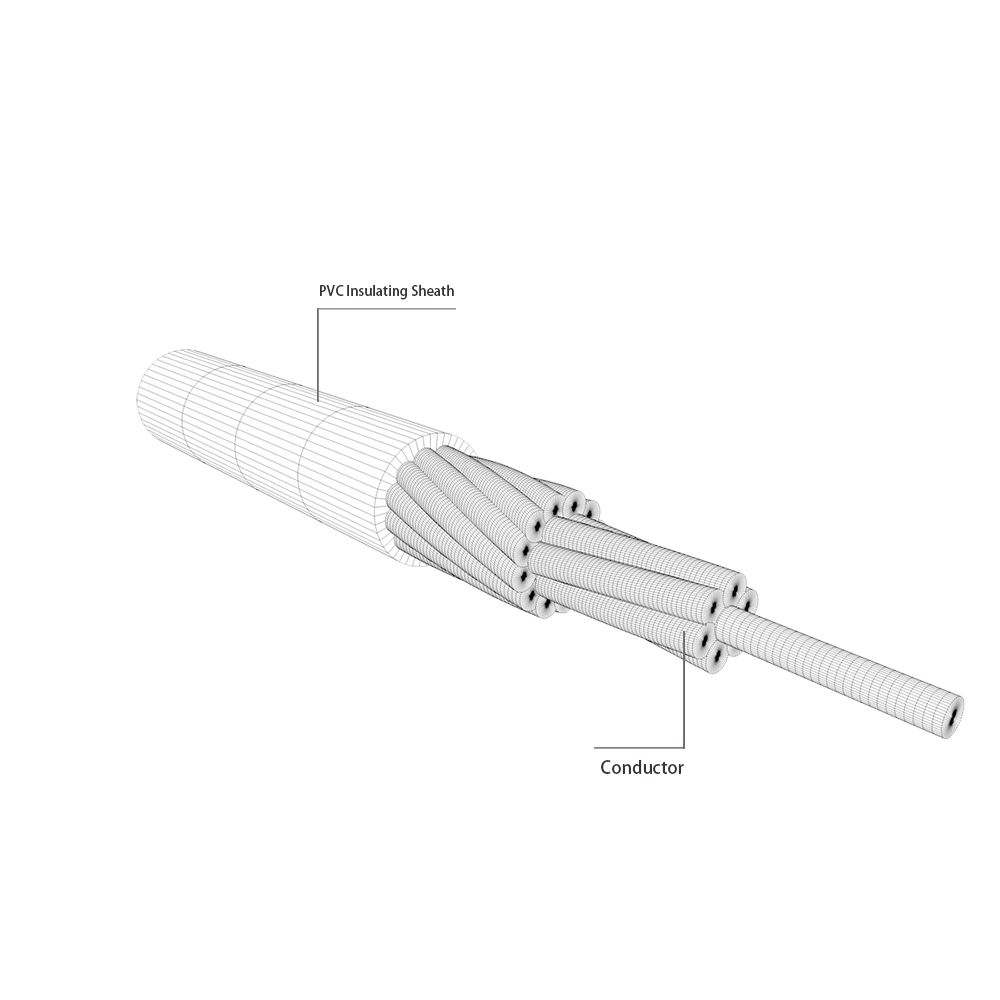

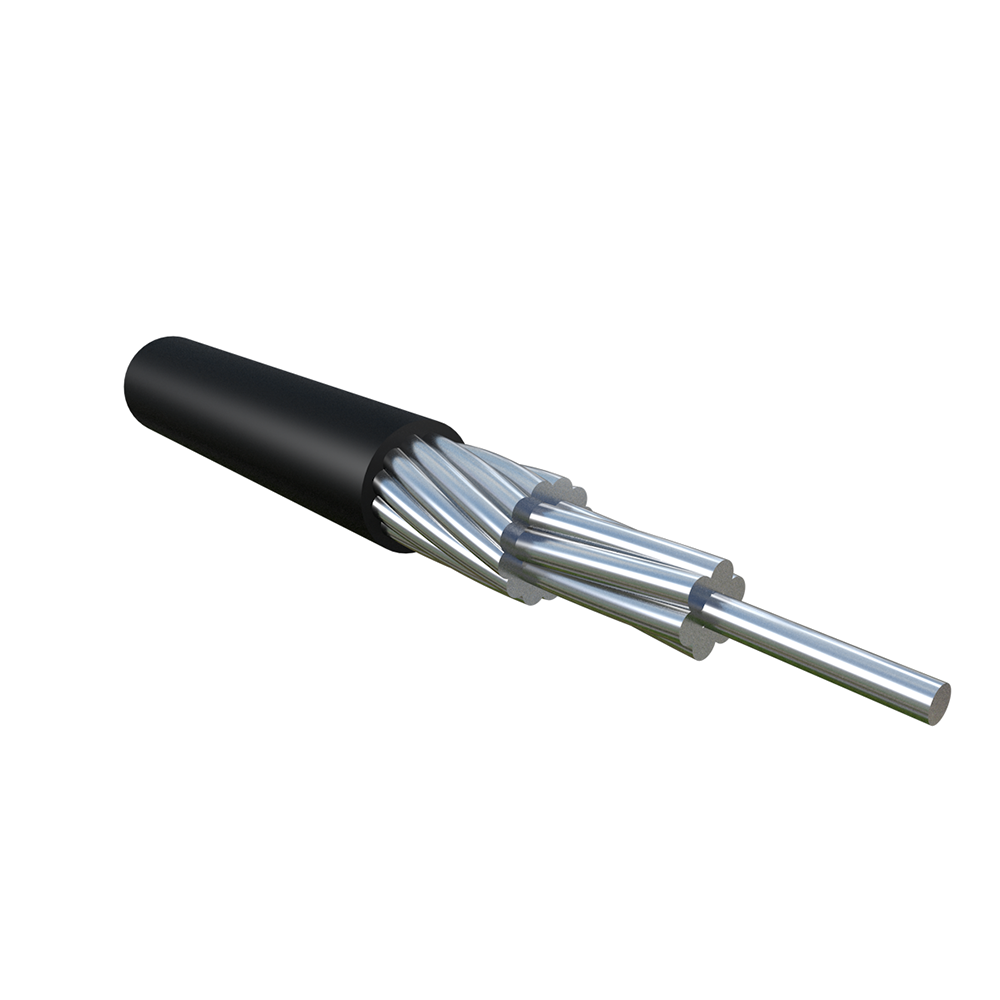

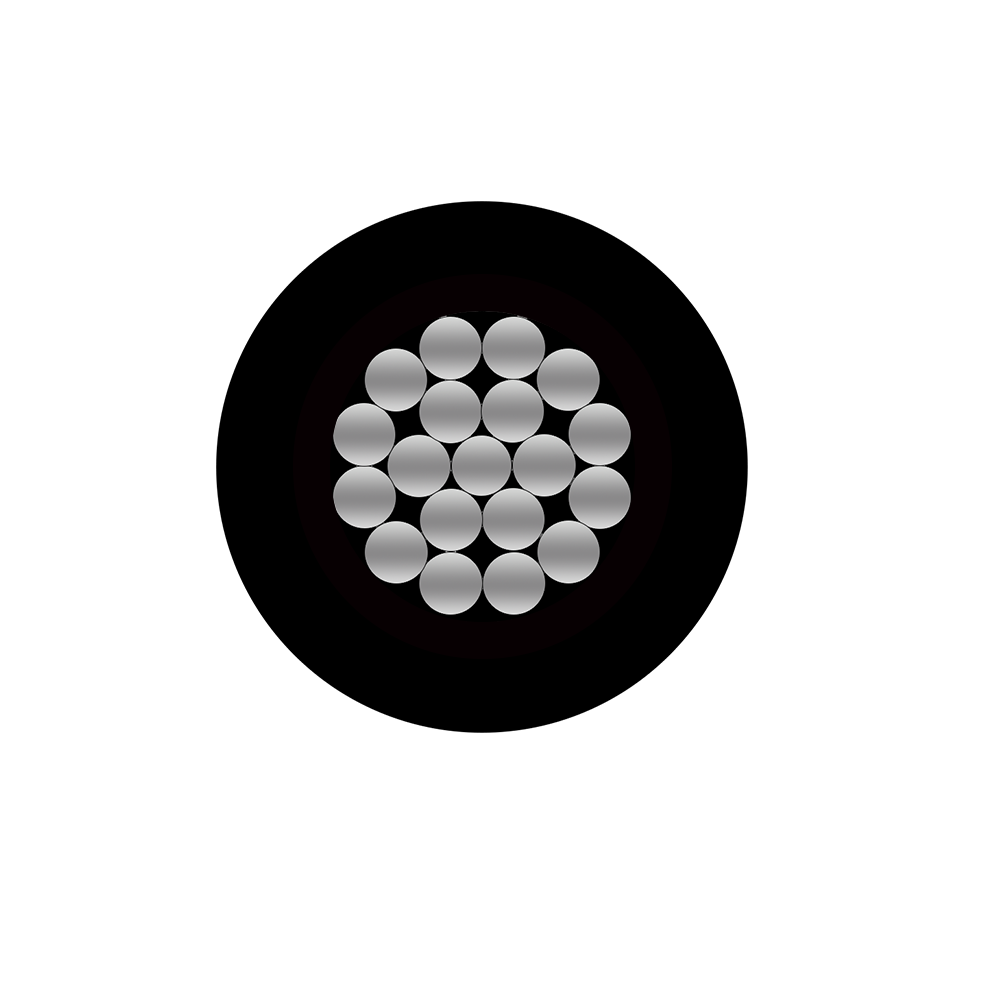

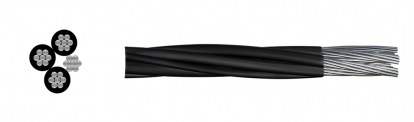

The 600V overhead insulated cable has a simple structure and consists of two parts: conductor and insulation
General selection of insulating materials: PE,XLPE,PVC, etc., the corresponding standard conductor material can be compressed or non-compressed.
Performance
| Nominal cross-section | Apporx.dia. of conductor | Apporx.outer dia. of cable | Approx. weight | Min. breaking load | Max. DC resistance at 20℃ | Current rating in air at 40℃ |
| mm2 | mm | mm | kg/km | kN | Ohm/km | A |
| 10 | 3.8 | 5.9 | 41 | 1.65 | 3.08 | 64 |
| 16 | 4.8 | 7.3 | 63 | 2.52 | 1.91 | 87 |
| 25 | 6.01 | 8.5 | 91 | 3.76 | 1.2 | 115 |
| 35 | 7.06 | 9.9 | 126 | 5.18 | 0.868 | 140 |
| 50 | 8.18 | 11.1 | 163 | 7.01 | 0.641 | 175 |
| 70 | 9.88 | 12.8 | 228 | 10.35 | 0.443 | 220 |
| 95 | 11.6 | 14.9 | 312 | 13.73 | 0.32 | 270 |
| 120 | 13.09 | 16.4 | 385 | 17.34 | 0.253 | 315 |
| 150 | 14.3 | 18 | 473 | 21.03 | 0.206 | 365 |
| 185 | 16.2 | 20.3 | 596 | 26.73 | 0.164 | 425 |
| 240 | 18.61 | 23.1 | 778 | 34.68 | 0.125 | 505 |
Conductor performance

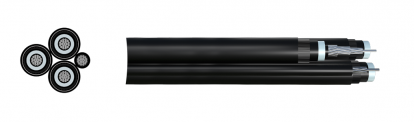

Duplex Service Drop
ACSR Neutral-Messenger
Aluminum Conductor
| Code Word | Phase Conductor Size AWG | Phase Conductor Stranding | Phase Conductor Insulation Thickness | Bare Neutral Messenger Size AWG | Bare Neutral Strand | Bare Neutral Messenger Breaking Strength | Weight Per 1000ft-XLP | Weight Per 1000ft-Poly | Rating -XLP | Rating -Poly |
| Setter | 6 | Solid | 45 mls | 6 | 6/1 | 1190 Lbs | 75.0 Lbs | 73.2 Lbs | 70 Amps | 70 Amps |
| Shepherd | 6 | 7/w | 45 mls | 6 | 6/1 | 1190 Lbs | 78.3 Lbs | 74.6 Lbs | 70 Amps | 70 Amps |
| Eskimo | 4 | Solid | 45 mls | 4 | 6/1 | 1860 Lbs | 113.7 Lbs | 111.6 Lbs | 90 Amps | 90 Amps |
| Terrier | 4 | 7/w | 45 mls | 4 | 6/1 | 1860 Lbs | 118.7 Lbs | 113.6 Lbs | 90 Amps | 90 Amps |
| C h o w | 2 | 7/w | 45 mls | 2 | 6/1 | 2850 Lbs | 181.7 Lbs | 174.7 Lbs | 120 Amps | 120 Amps |
| Bull | 1/0 | 19/w | 60 mls | 1/0 | 6/1 | 4380 Lbs | 288.7 Lbs | 280.3 Lbs | 160 Amps | 160 Amps |
Duplex Service Drop
AAAC 6201 Alloy Neutral Messenger
Aluminum Conductor
| Code Word | Phase Conductor Size AWG | Phase Conductor Stranding | Phase Conductor Insulation Thickness | Bare Neutral Messenger Size AWG | Bare Neutral Strand | Bare Neutral Messenger Breaking Strength | Weight Per 1000ft-XLP | Weight Per 1000ft-Poly | Rating -XLP | Rating -Poly |
| Chihuahua | 6 | Solid | 45 mls | 6 | 7 | 1110 Lbs | 67.6 Lbs | 65.8 Lbs | 70 Amps | 70 Amps |
| Vizsla | 6 | 7/w | 45 mls | 6 | 7 | 1110 Lbs | 70.9 Lbs | 67.2 Lbs | 70 Amps | 70 Amps |
| Harrier | 4 | Solid | 45 mls | 4 | 7 | 1760 Lbs | 102.0 Lbs | 99.9 Lbs | 90 Amps | 90 Amps |
| Whippet | 4 | 7/w | 45 mls | 4 | 7 | 1760 Lbs | 107.0 Lbs | 101.9 Lbs | 90 Amps | 90 Amps |
| Schnauzer | 2 | 7/w | 45 mls | 2 | 7 | 2800 Lbs | 163.3 Lbs | 156.2 Lbs | 120 Amps | 120 Amps |
| Heeler | 1/0 | 19/w | 60 mls | 1/0 | 7 | 4460 Lbs | 259.2 Lbs | 250.8 Lbs | 160 Amps | 160 Amps |
