AAC conductor is also called aluminium stranded conductor.This Standard specifies the electrical and mechanical characteristics of round wire concentric lay overhead electrical stranded conductors.Aluminum wires is hard-drawn aluminum in accordance with CAN/CSA-C60889, designated A1.
Features
1.High conductivity
2.Exellent corrosion resistance
3.Good economic practicality
Application
These conductors can be used for a variety of voltages such as low, medium and high voltage. AAC is now also widely used in urban areas where short spans and high electrical conductivity are required.
Construction

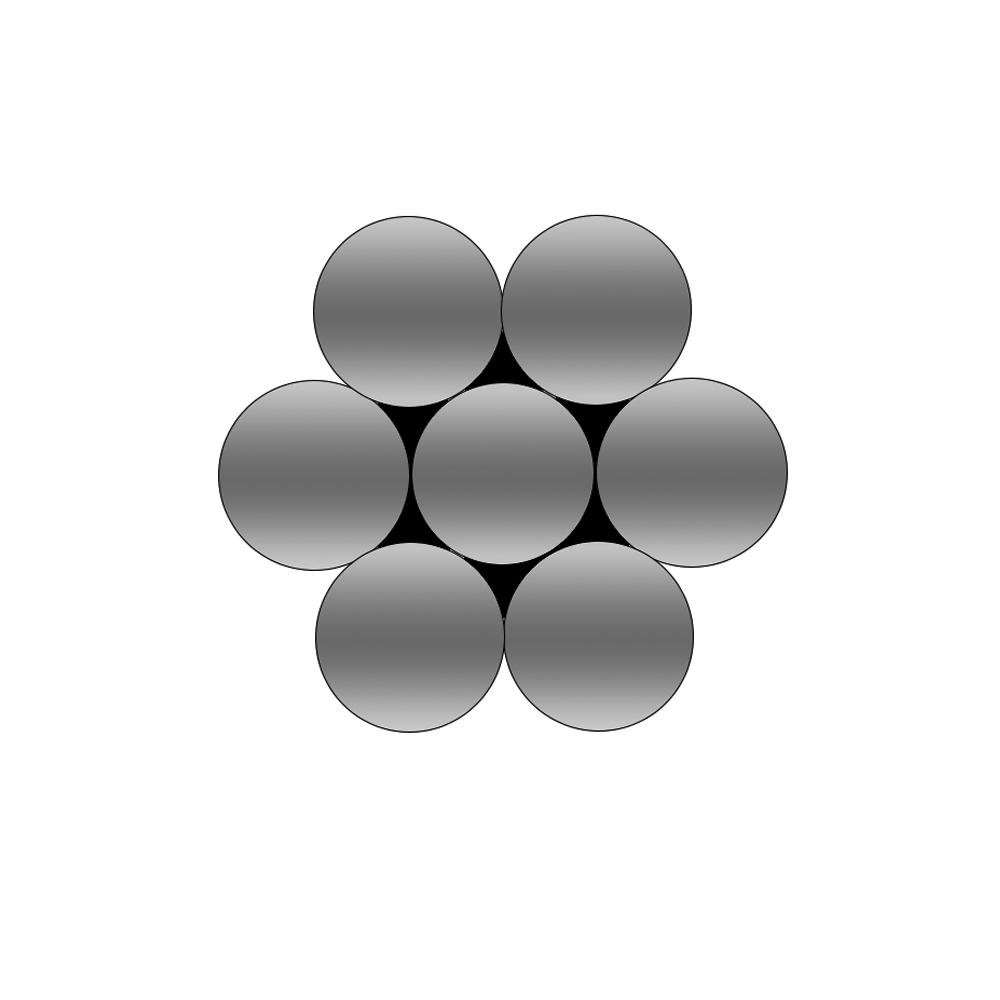

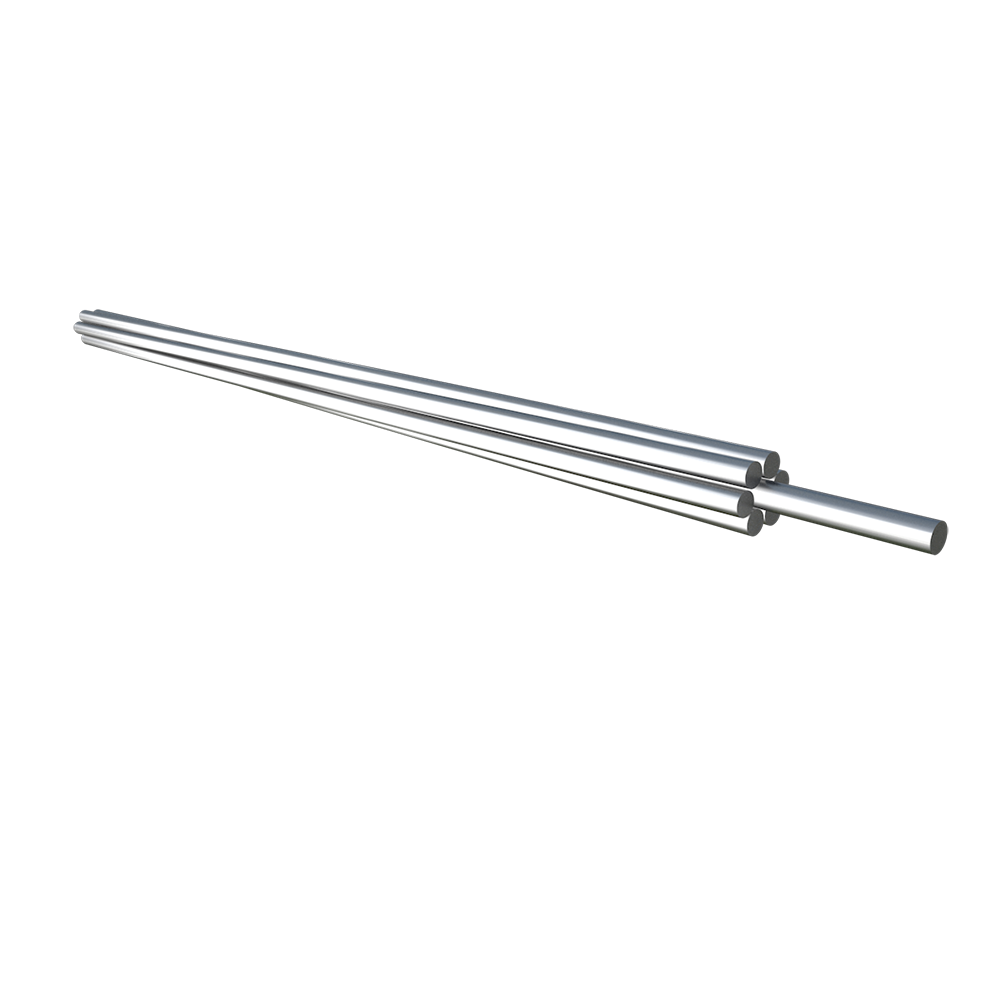

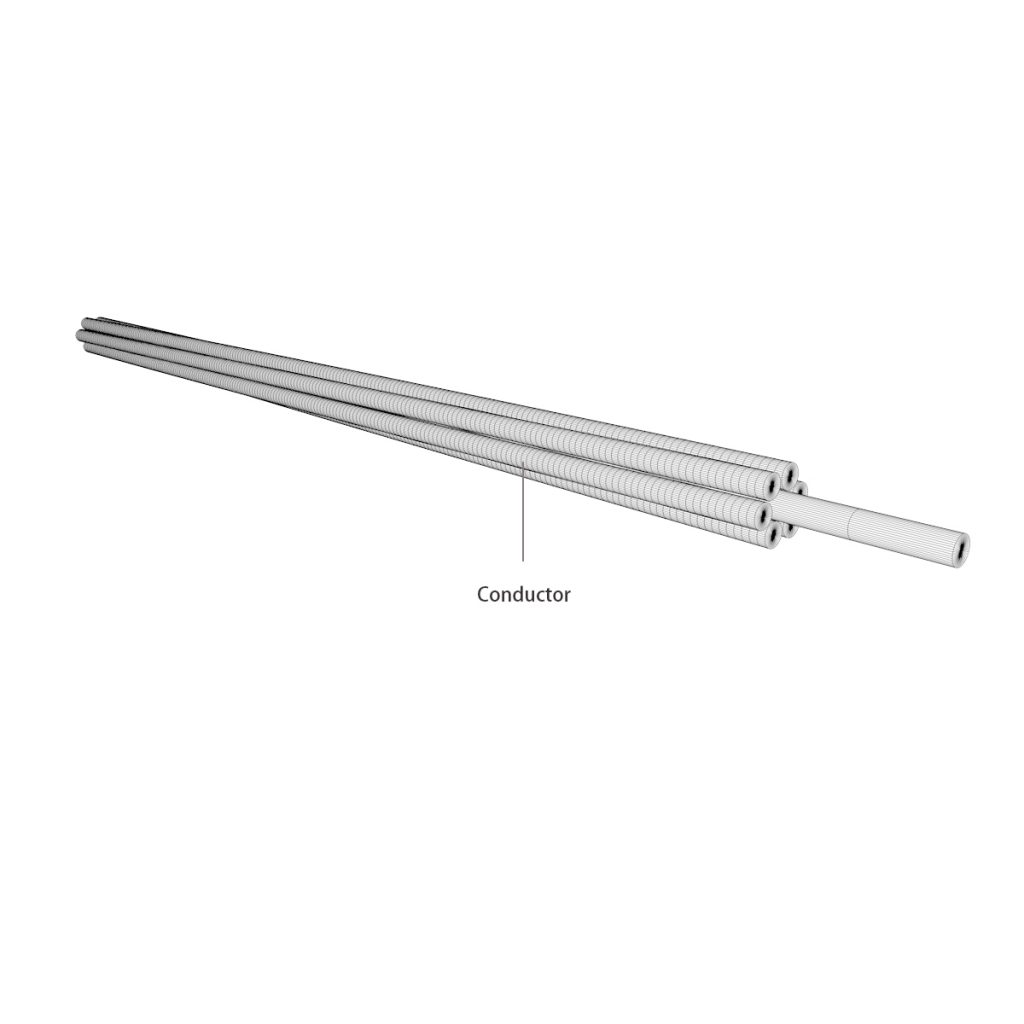

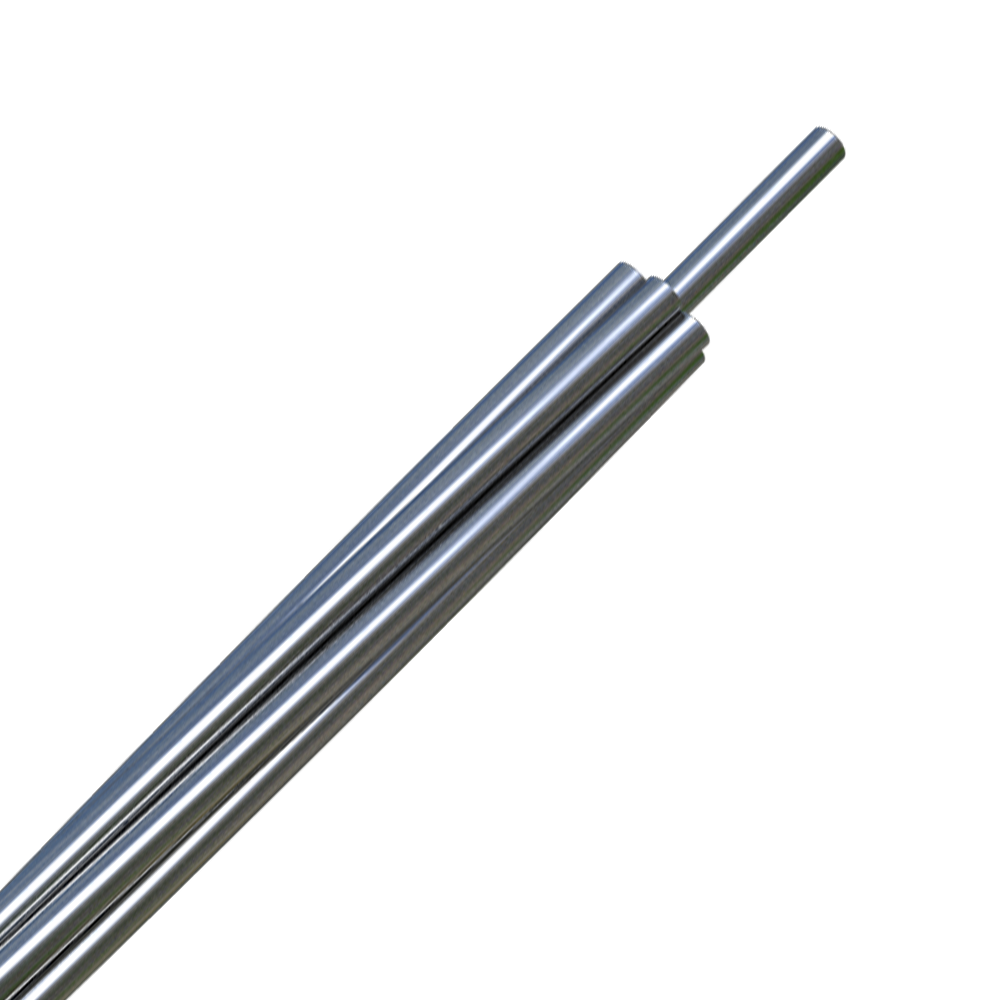

All aluminum conductors consist of one or more strands of aluminum wire.
Performance
Round wire concentric lay overhead electrical stranded conductors ASC-CSA C61089:
| Designation | Area Al (mm2) | n* | Wre diameter (mm) | Conductor diameter (mm) | Iinear mass (kg/m) | Iinear weight (Nm) | Rated tensile strength (kN) | DC resistance at 20 EC (S /km) | kcmril or AWG | Conductor name |
| 13-A1-7 | 1330 | 7 | 1 .56 | 4.67 | 0.03644 | 0.3573 | 2.609 | 2.1 54 | 6 | Peachbell |
| 21-A1-7 | 21.15 | 7 | 1 .96 | 5.88 | 0.05796 | 0.5684 | 4.118 | 1 .354 | 4 | Rose |
| 27-A1-7 | 26.66 | 7 | 2.20 | 6.61 | 0.07307 | 0.7166 | 5.056 | 1 .074 | 3 | Lily |
| 34-A1-7 | 3363 | 7 | 2.47 | 7.42 | 0.09215 | 0.9037 | 6.205 | 0.8516 | 2 | Iris |
| 42-A1-7 | 42.41 | 7 | 2.78 | 833 | 0.1162 | 1.140 | 7.436 | 0.6752 | 1 | Pansy |
| 54-A1-7 | 53.51 | 7 | 3.12 | 9.36 | 0.1 466 | 1 .438 | 9.098 | 0.5351 | 1/0 | Poppy |
| 67-A1-7 | 67.44 | 7 | 3.50 | 10.5 | 0.1848 | 1 .812 | 11 .45 | 0.4246 | 2/0 | Aster |
| 85-A1-7 | 8503 | 7 | 3.93 | 11.8 | 0.2330 | 2.285 | 14.01 | 03368 | 30 | Phlox |
| 107-A1-7 | 107.2 | 7 | 4.42 | 13.2 | 0.2938 | 2.881 | 17.72 | 0.2671 | 4/0 | Oxlip |
| 127-A1-19 | 126.7 | 19 | 2.91 | 14.6 | 0.3488 | 3.421 | 22.11 | 0.2271 | 250 | Valerian |
| 135-A1-7 | 135.2 | 7 | 4.96 | 14.9 | 0.3705 | 3.633 | 2232 | 0.2118 | 266.8 | Daisy |
| 135-A1-19 | 135.2 | 19 | 3.01 | 15.0 | 0.3723 | 3.651 | 22.98 | 0.2128 | 266.8 | L aurel |
| 152-A1-19 | 152.0 | 19 | 3.19 | 16.0 | 0.4186 | 4.105 | 25.82 | 0.1893 | 300 | Peony |
| 170-A1-19 | 170.5 | 19 | 338 | 16.9 | 0.4694 | 4.603 | 28.98 | 0.1688 | 336.4 | Tuip |
| 177-A1-19 | 177.4 | 19 | 3.45 | 17.2 | 0.4884 | 4.789 | 30.19 | 0.1622 | 350 | Daffodil |
| 201-A1-19 | 201.4 | 19 | 3.67 | 18.4 | 0.5546 | 5.439 | 34.17 | 0.1429 | 397.5 | Carna |
| 203-A1-19 | 202.7 | 19 | 3.69 | 18.4 | 0.5581 | 5.473 | 34.54 | 0.1420 | 400 | |
| 228-A1-19 | 228.0 | 19 | 3.91 | 19.5 | 0.6279 | 6.1 58 | 37.64 | 0.1262 | 450 | Goldentuff |
| 242-A1-19 | 241.7 | 19 | 4.02 | 20.1 | 0.6656 | 6.527 | 39.79 | 0.1190 | 477 | Cosmos |
| 253-A1-19 | 253.4 | 19 | 4.12 | 20.6 | 0.6977 | 6.842 | 41 .79 | 0.1136 | 500 | Zinnia |
| 279-A1-37 | 278.7 | 37 | 3.10 | 21.7 | 0.7692 | 7.544 | 47.47 | 0.1035 | 550 | |
| 282-A1-19 | 282.0 | 19 | 4.35 | 21.7 | 0.7765 | 7.615 | 46.59 | 0.1020 | 556.5 | Dahlia |
| 304-A1-37 | 304.0 | 37 | 3.23 | 22.6 | 0.8392 | 8.230 | 51 .54 | 0.09486 | 600 | Meadovsweet |
| 322-A1-37 | 322.3 | 37 | 3.33 | 23.3 | 0.8895 | 8.723 | 54.78 | 0.08949 | 636 | Orchid |
| 329-A1-37 | 329.4 | 37 | 3.37 | 23.6 | 0.9091 | 8.915 | 56.10 | 0.08757 | 650 | Heuchera |
| 355-A1-37 | 354.7 | 37 | 3.49 | 24.5 | 0.9790 | 9.601 | 60.17 | 0.08131 | 700 | Verbena |
| 363-A1-37 | 362.6 | 37 | 3.53 | 24.7 | 1 .001 | 9.814 | 61 .56 | 0.07955 | 715.5 | Molet |
| 380-A1-37 | 380.0 | 37 | 3.62 | 25.3 | 1 .049 | 10.29 | 64.74 | 0.07589 | 750 | Petunia |
| 403-A1-37 | 402.8 | 37 | 3.72 | 26.1 | 1.112 | 10.90 | 68.36 | 0.07160 | 795 | Arbutus |
| 405-A1-37 | 405.4 | 37 | 3.73 | 26.1 | 1.119 | 10.97 | 68.73 | 0.07115 | 800 | |
| 443-A1-37 | 443.1 | 37 | 3.90 | 273 | 1 .223 | 11 .99 | 72.93 | 0.06509 | 874.5 | Anemone |
| 456-A1-37 | 456.0 | 37 | 3.96 | 27.7 | 1 .259 | 12.34 | 75.19 | 0.06324 | 900 | Cockscomb |
| 470-A1-37 | 469.8 | 37 | 4.02 | 28.1 | 1 .297 | 12.72 | 77.49 | 0.06139 | 927.2 | |
| 483-A1-37 | 483.4 | 37 | 4.08 | 28.5 | 1 .334 | 13.08 | 79.82 | 0.05966 | 954 | Magnolia |
| 507 -A1-37 | 506.7 | 37 | 4.18 | 29.2 | 1 .399 | 13.72 | 83.78 | 0.05692 | 1000 | Havk weed |
| 524-A1-37 | 523.7 | 37 | 4.25 | 29.7 | 1 .445 | 14.18 | 86.61 | 0.05507 | 1033.5 | Bluebell |
| 557 -A1-61 | 557.4 | 61 | 3.41 | 30.7 | 1 .541 | 15.11 | 94.71 | 0.05182 | 1100 | |
| 564-A1 -61 | 564.0 | 61 | 3.43 | 30.9 | 1 .559 | 15.29 | 95.82 | 0.05121 | 1113 | Marigold |
| 725-A1-61 | 725.1 | 61 | 3.89 | 35.0 | 2.004 | 19.66 | 119.6 | 0.03983 | 1431 | Carnation |
| 760-A1 -61 | 760.1 | 61 | 3.98 | 35.8 | 2.101 | 20.60 | 125.2 | 0.038 | 1500 | |
| 765-A1 -61 | 765.4 | 61 | 4.00 | 36.0 | 2.116 | 20.75 | 126.5 | 0.03774 | 1510.5 | Gladiolus |
| 806-A1 -61 | 805.7 | 61 | 4.10 | 36.9 | 2.227 | 21 .84 | 132.9 | 0.03585 | 1590 | Coreopsis |
| 811-A1 -61 | 810.7 | 61 | 4.11 | 37.0 | 2.241 | 21 .98 | 133.5 | 0.03563 | 1600 | |
| 861 -A1 -61 | 861.4 | 61 | 4.24 | 38.2 | 2.381 | 23.35 | 142.1 | 0.03353 | 1700 | |
| 912-A1 -91 | 912.1 | 91 | 3.57 | 39.3 | 2.524 | 24.75 | 154.9 | 0.03170 | 1800 | |
| 1013-A1 -91 | 1013 | 91 | 3.77 | 41.4 | 2.804 | 27.50 | 167 .6 | 0.02853 | 2000 | Cowsip |
| 1140-A1-91 | 1140 | 91 | 3.99 | 43.9 | 3.155 | 30.94 | 187.7 | 0.02536 | 2250 | Sagebrush |
| 1234-A1 -91 | 1234 | 91 | 4.16 | 45.7 | 3.415 | 33.49 | 204.1 | 0.02343 | 2435.6 | |
| 1267-A1 -91 | 1267 | 91 | 4.21 | 46.3 | 3.505 | 34.38 | 209 .0 | 0.02283 | 2500 | Lupine |
| 1393-A1 -91 | 1393 | 91 | 4.42 | 48.6 | 3.856 | 37.81 | 230.4 | 0.02075 | 2750 | Btterroot |
| 1520-A1 -91 | 1520 | 91 | 4.61 | 50.7 | 4.207 | 41 .25 | 250.6 | 0.01902 | 3000 | |
| 1524-A1 -91 | 1524 | 91 | 4.62 | 50.8 | 4.217 | 41 .36 | 251.7 | 0.01897 | 3007.7 | |
| 1773-A1 -91 | 1773 | 91 | 4.98 | 54.8 | 4.908 | 48.13 | 292.5 | 0.01 630 | 3500 | |
| 1844-A1 -91 | 1844 | 91 | 5.08 | 55.9 | 5.104 | 50.05 | 304.3 | 0.01 568 | 3640 |
