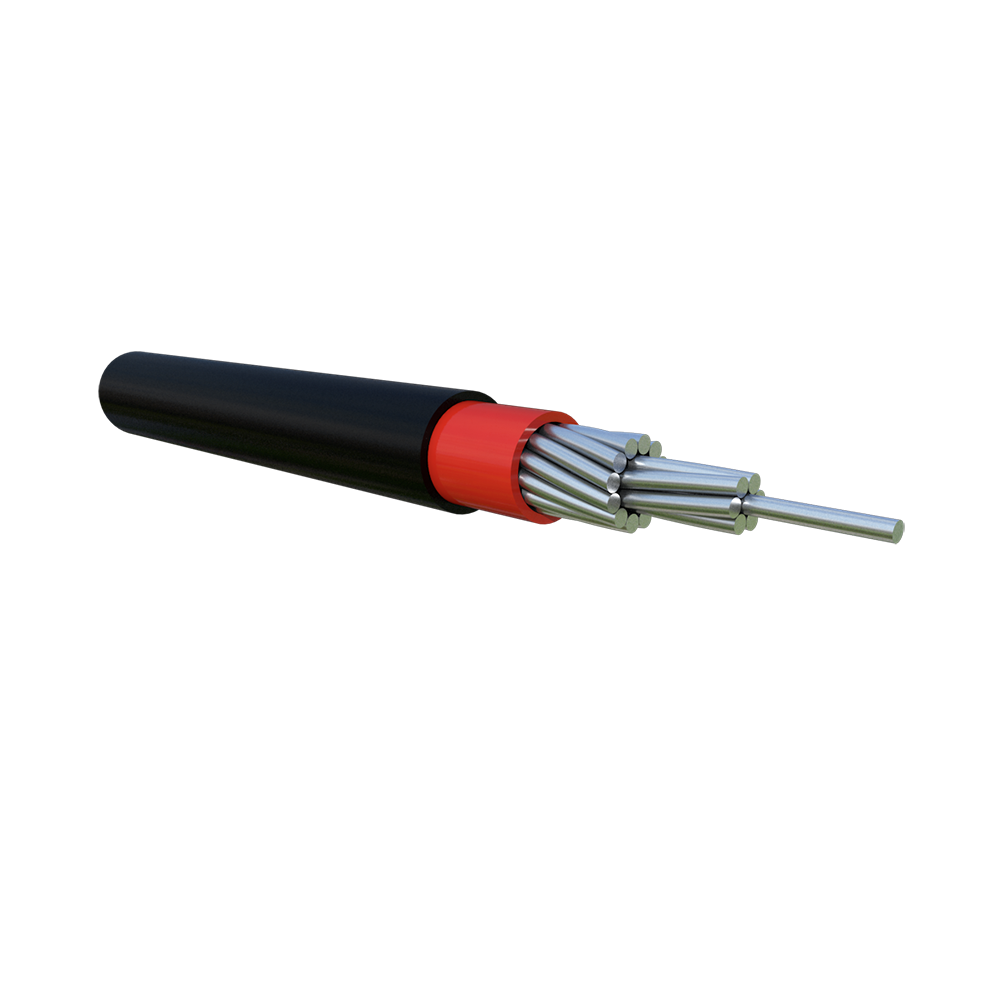

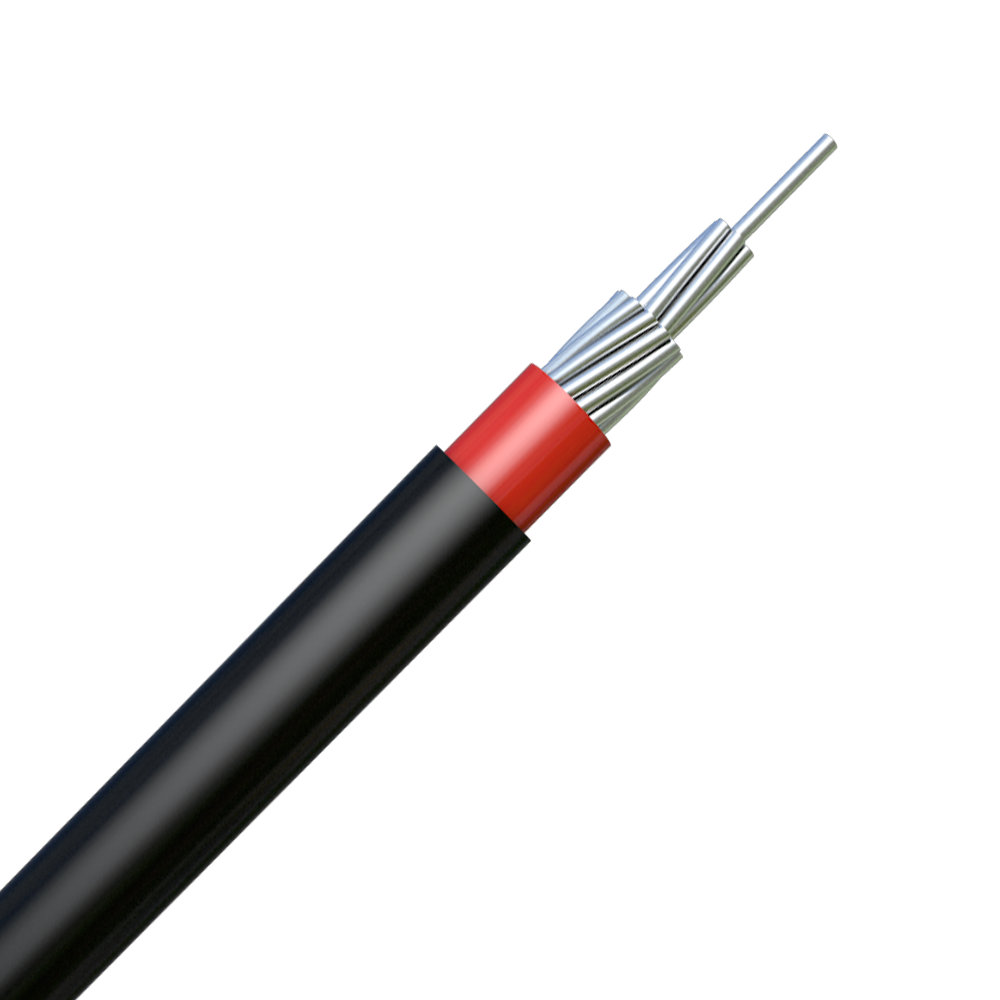

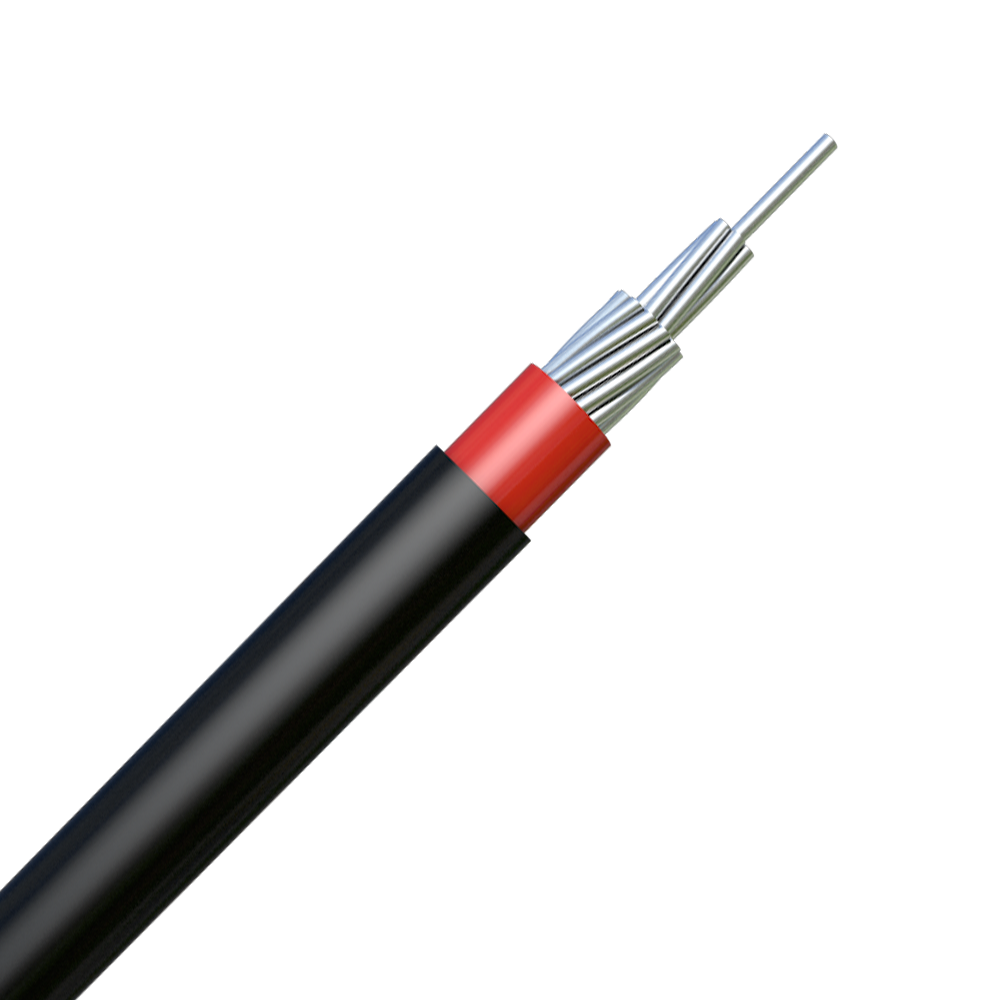

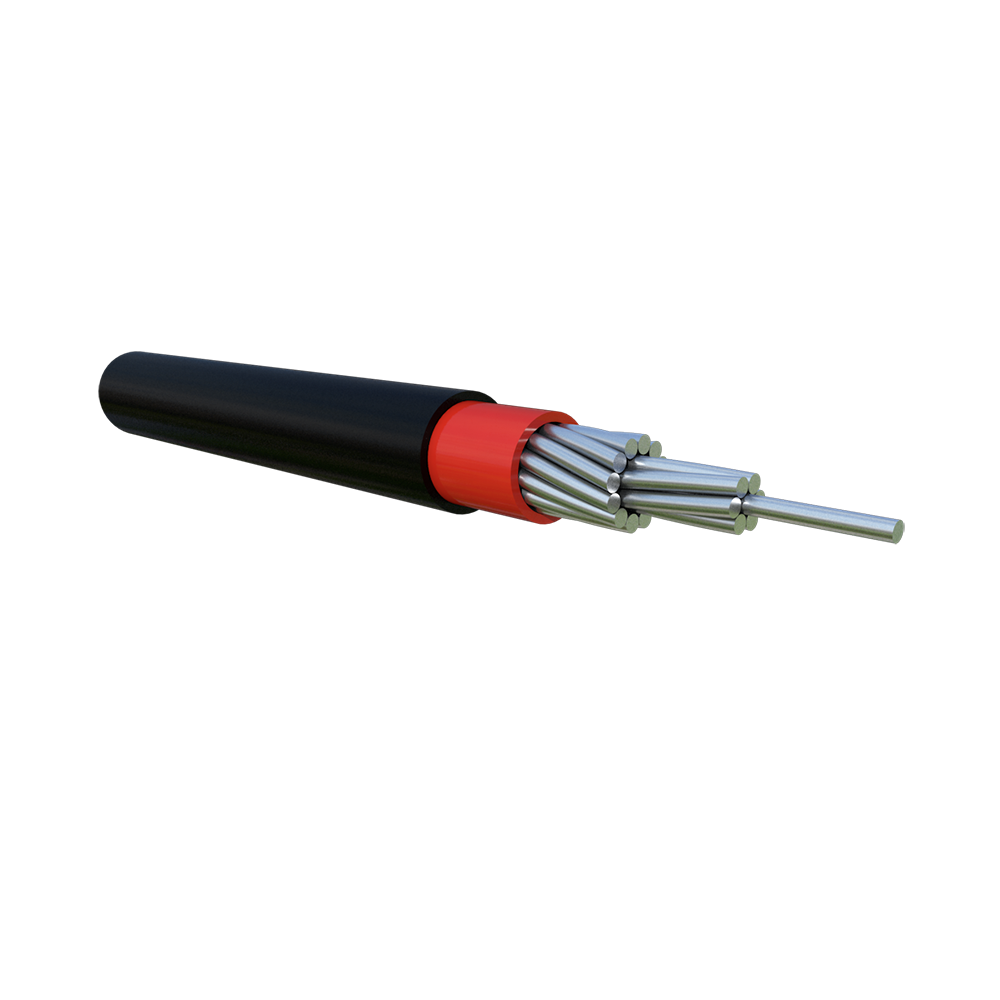

0.6/1KV PVC insulated cables are currently widely used products in power systems. Their structures are stable. Different cable specifications can be selected according to the system used, such as three-phase four-wire system, three-phase five-wire system, etc.
The cross-section range is large.Conductor materials can be selected from aluminum, copper, aluminum alloy and other materials.
According to customer demand, it can be manufactured according to the standards of different countries

Its main performance parameters are as follows：

  1. AC rated voltage（UO／U）: 0.6/1KV
  2. The maximum operating temperature of PVC is not more than 70℃.
  3. Minimum ambient temperature: -15 ℃
  4. The cable installation and laying temperature should not be lower than 0 ° C
  5. The allowable bending radius of the cable is specified in Table 1.
itemsingle core unarmoured cablesingle core armoured cable3-core unarmoured cable3-core armoured cable
Minimum bending radius during installation20D15D15D12D
Minimum bend radius for cables close to junction boxes and terminals15D12D12D10D
Table 1 Allowable bending radius of cables

Features

  1. Good performance
    The product has good performance on electrical characteristic, chemical resistance, such as acid resistance,alkali resistance and organic solvent resistance.
  2. Laying not limited by pressure drop
    The product can be laid on any head drop condition even vertically in any place, that is to say, the cable can be laid without limit on head drop.

Application

This product is suitable for distribution networks, industrial devices and other fields. It is used for fixed laying on power transmission and distribution lines with AC 50Hz and rated voltage 0.6/1kV. The main function is to transmit electric energy. This product is used under normal conditions, not suitable for occasions with special conditions, such as aerial, underwater, marine, submarine, nuclear power plants, etc.

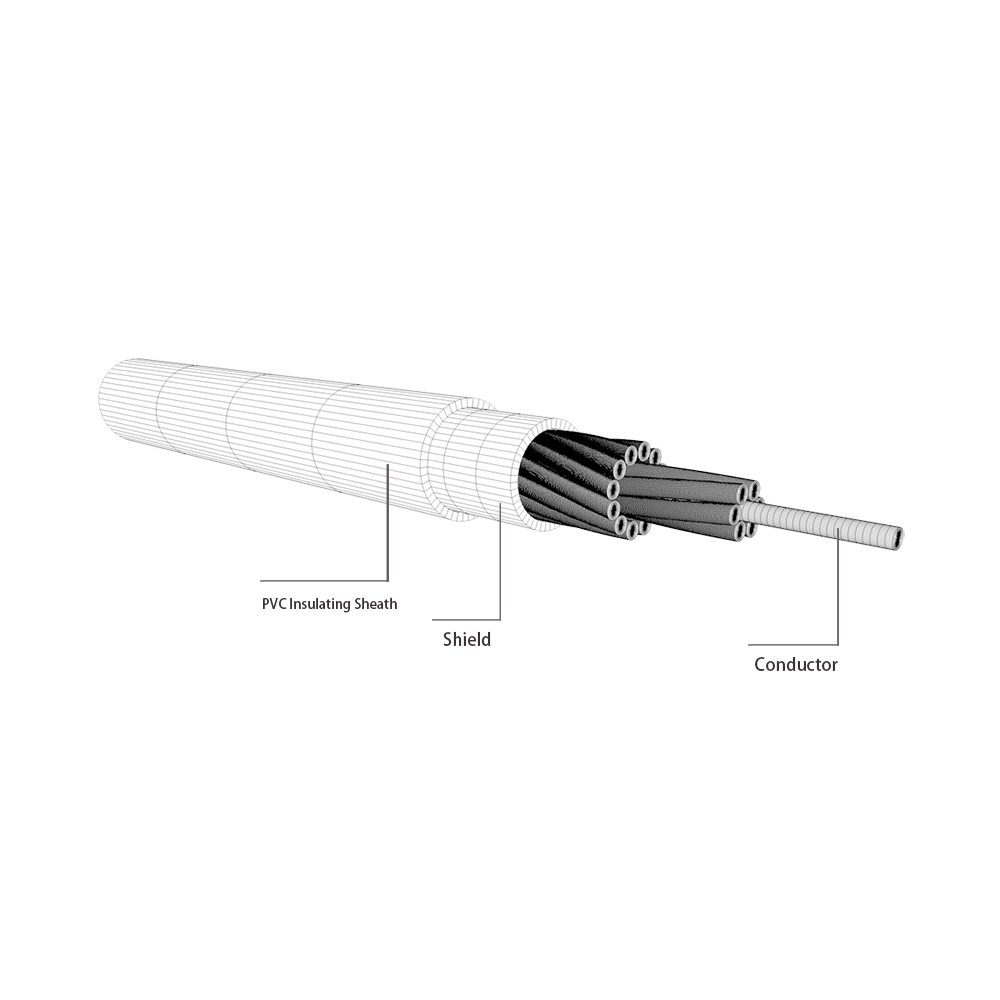

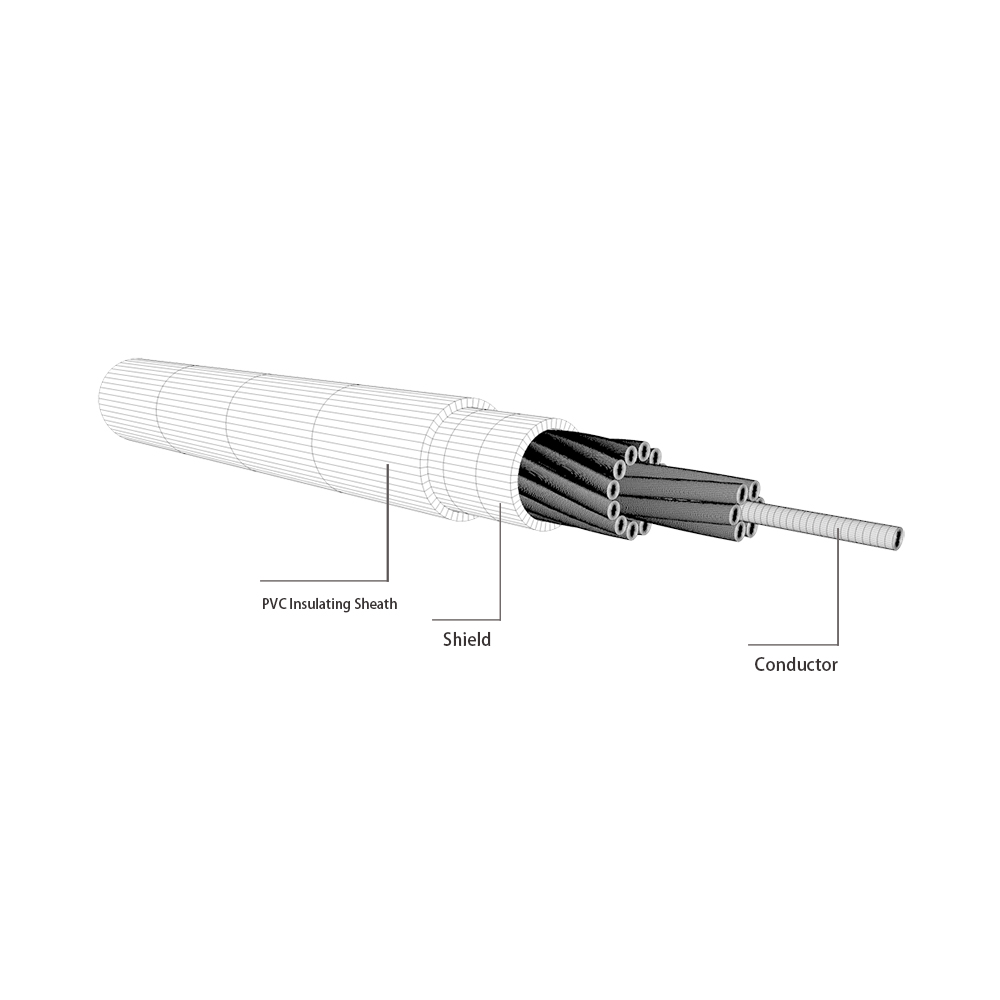

Construction

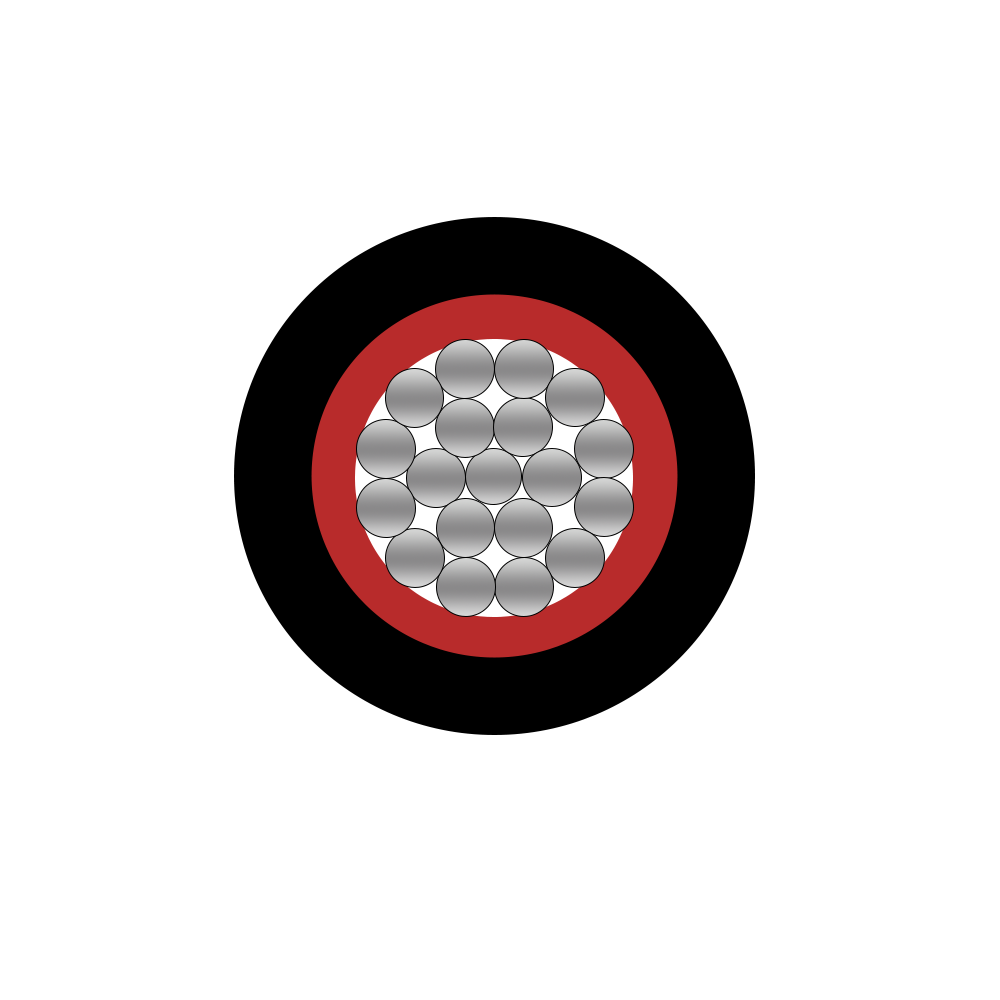

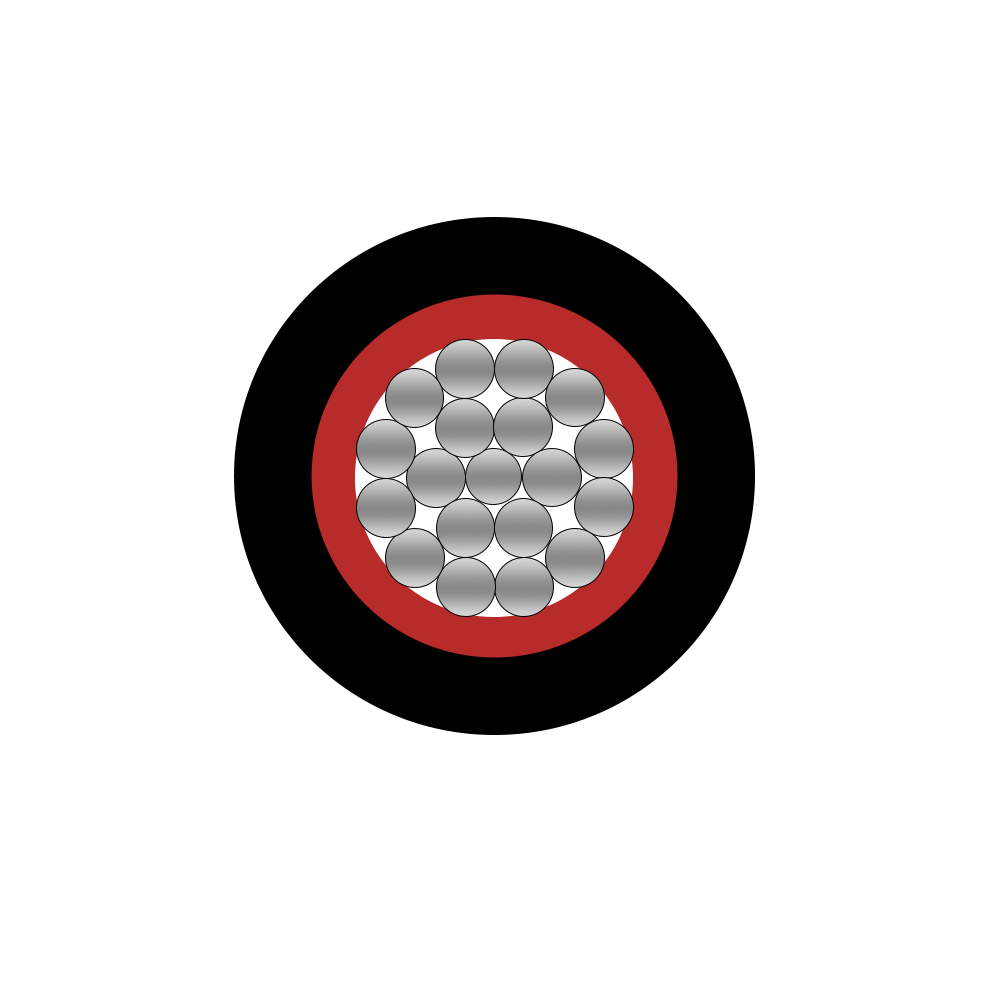

0.61kV PVC insulation power cable Construction
1.Conductor 2.Insulation 3.Filling 4. Taping 8. Sheath

Performance

IEC60502----Single core, Copper Conductor, PVC Insulated Power Cable

Nos×mm2Nominal Thickness of Insulation mmApprox
Copper
Overall
Dia. mm		Approx
Copper
Weight
kg/km		Approx
Aluminium
Overall
Dia. mm		Approx
Aluminium
Weight
kg/km		Max. DC Resistance at 20℃
Copper
Ohm/km		Max. DC Resistance at 20℃
Aluminium
Ohm/km		Recommending Current Rating A
Copper
In Ground		Recommending Current Rating A
Copper
In  Air		Recommending Current Rating A
Aluminium
In  Ground		Recommending Current Rating A
Aluminium
In  Air
1×1.50.86.151--12.1-2030--
1×2.50.86.5636.48487.4112.126402821
1×417.7887.73634.617.4135523729
1×617.91117.88763.084.6143644838
1×1018.71568.69941.833.0830876149
1×1619.62189.621201.151.91801118065
1×251.212.0 33511.961770.7271.210314410384
1×351.213.143713.12170.5240.868121172121100
1×501.414.957714.862800.3870.641152205147122
1×701.416.779016.663600.2680.443189250178155
1×951.619.2107819.24820.1930.32236300215194
1×1201.620.8132620.815730.1530.253273344246222
1×1501.823.0 162522.997000.1240.206315389278255
1×185225.5202525.518660.09910.164362438315300
1×2402.228.8263128.7611070.07540.125430505367355
1×3002.431.8327431.8213620.06010.1498572414411
1×4002.635.4414535.4317000.0470.0778582649477488
1×5002.839.2517839.2220960.03660.0605671733545566
1×6302.843.6666843.6326270.02830.0469765821619660
1×8002.848.1839448.1432340.02210.0367870910697766
1×1000353.51049553.540170.01760.0291--771866

IEC60502--Two Cores, Copper Conductor, PVC InsulatedPower Cable

Nos×mm2Nominal Thickness of Insulation mmApprox
Copper
Overall
Dia. mm		Approx
Copper
Weight
kg/km		Approx
Aluminium
Overall
Dia. mm		Approx
Aluminium
Weight
kg/km		Max. DC Resistance at 20℃
Copper
Ohm/km		Max. DC Resistance at 20℃
Aluminium
Ohm/km		Recommending Current Rating A
Copper
In Ground		Recommending Current Rating A
Copper
In  Air		Recommending Current Rating A
Aluminium
In  Ground		Recommending Current Rating A
Aluminium
In  Air
2×1.50.89.9112--12.1-2819--
2×2.50.810.714110.661107.4112.136262820
2×4112.419712.441474.617.4147343727
2×6113.724913.61783.084.6160424836
2×10115.134715.082221.833.0881596247
2×16117.0 48316.942841.151.91106798261
2×251.218.267918.23660.7271.213210010678
2×351.219.687619.624440.5240.86816412212795
2×501.422.1115722.085710.3870.641196150154117
2×701.424.8159024.767420.2680.443244183185144
2×951.628.3216028.279870.1930.32291233222183
2×1201.630.5266430.5211800.1530.253328272260211
2×1501.833.6325733.5814350.1240.206371311291239
2×185237.3407537.3117860.09910.164418356328278
