0.6/1KV Currently, PVC insulated cables are a common product in power systems. They have sturdy constructions. The cross-section range is wide, and different cable specifications can be chosen depending on the system being utilized, such as three-phase four-wire system or three-phase five-wire system. The conductor material can be selected from aluminum, copper, aluminum alloy and other materials. It can be manufactured according to the standards of different countries according to the needs of users. Its main performance parameters are as follows:

  1. AC rated voltage (U0/U): 0.6/1kV.
  2. The maximum working temperature of polyethylene gas should not exceed 70C.
  3. Minimum ambient temperature: -15C.
  4. The temperature of the electric performance installation should not be lower than 0"C.
  5. The allowable bending radius of the cable is specified in Table 1: Table 1 Allowable bending radius of the cable
itemsingle core cablesingle core cablethree-core cablethree-core cable
  no armorarmorno armorarmor
Cable minimum bending radius during installation20D15D15D12D
The minimum bend radius of the electrical terminal near the connection box and the terminal (but the bending should be carefully controlled, such as using a formed guide plate)15D12D12D10D
Note: D is the outer diameter of the cable.

Features

The product performs well in terms of electrical characteristics and chemical resistance, including acid resistance, alkali resistance, and resistance to organic solvents. In other words, the cable can be laid with no restriction on head drop in any head drop circumstance, including vertically, wherever the product is laid.

Application

This product is appropriate for industrial devices, distribution networks, and other industries. It has a rated voltage of 0.6/1 kV and is suitable for fixed laying on electricity transmission and distribution lines with AC 50Hz. The transmission of electric electricity is the major purpose. This product should only be used in situations with typical conditions; it is not appropriate for use in nuclear power plants, airborne, undersea, marine, or other unique environments.

Construction

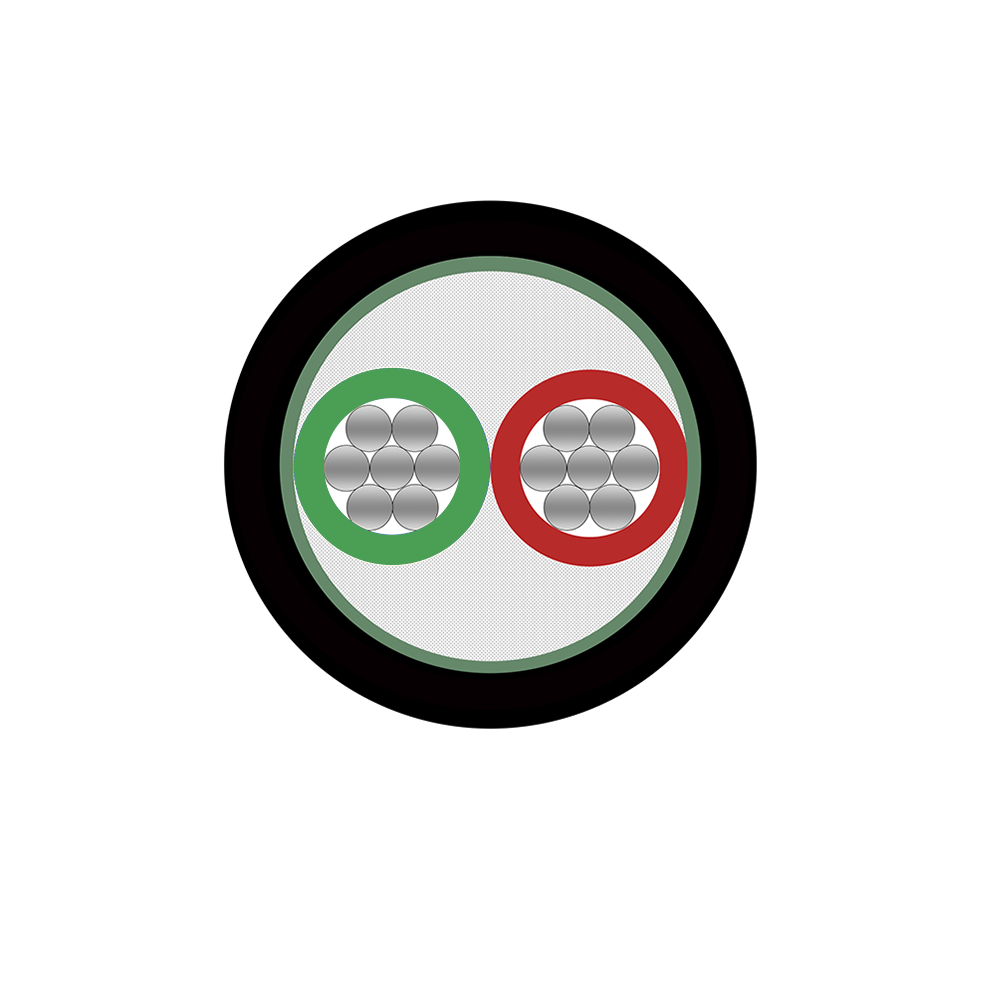

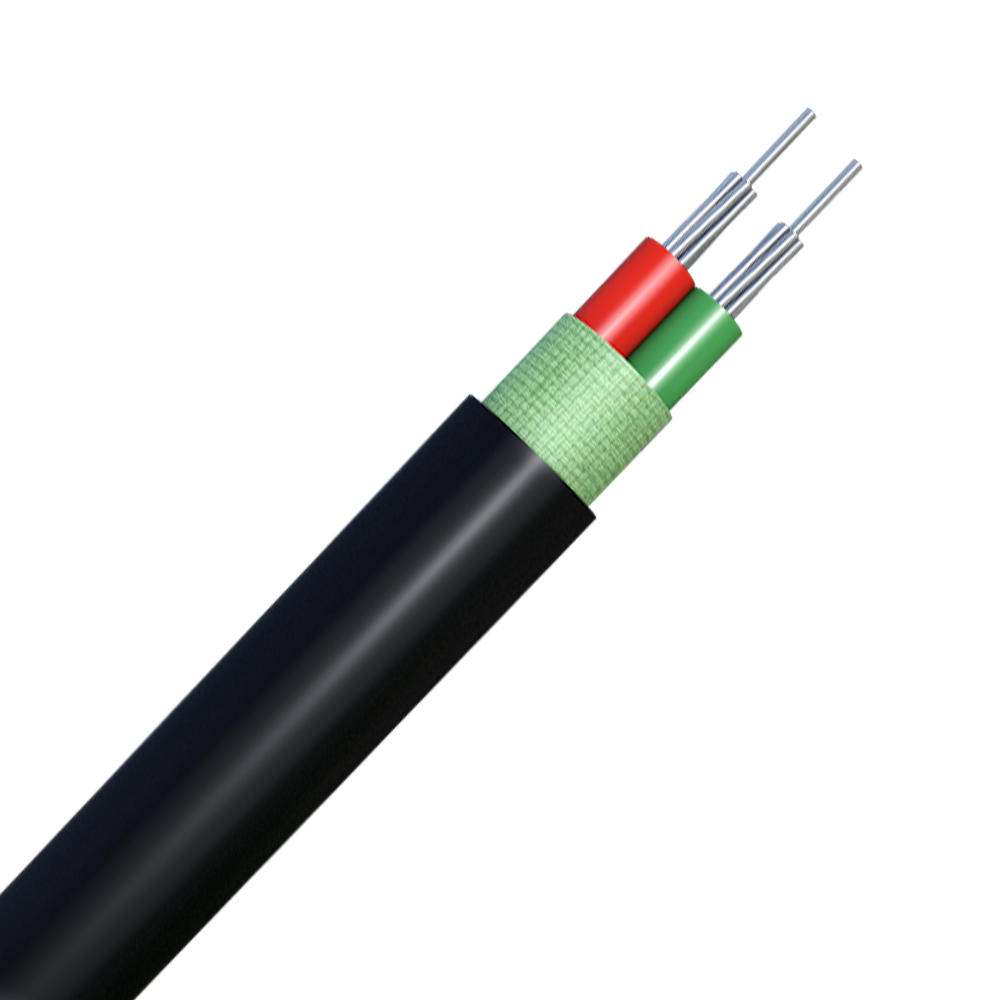

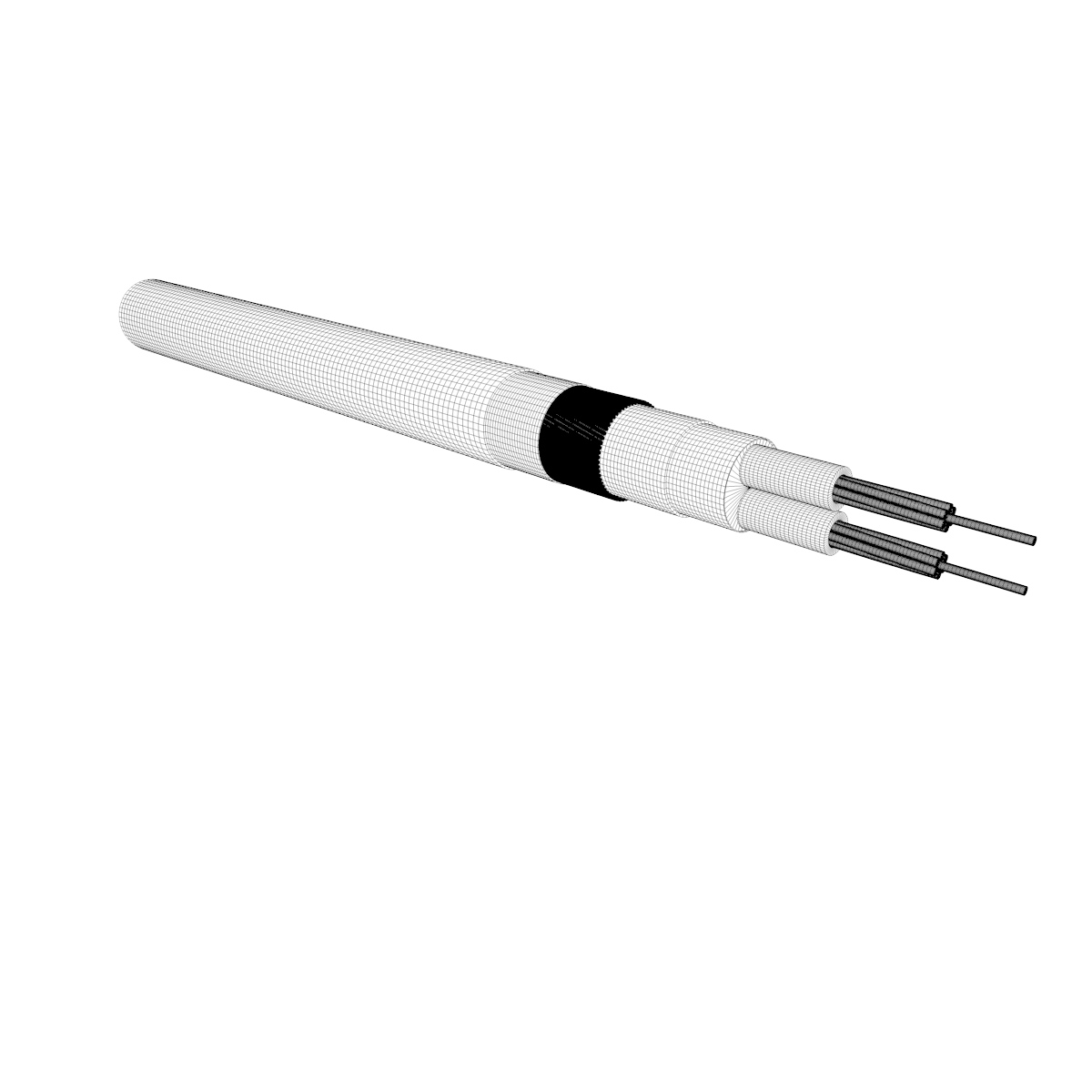

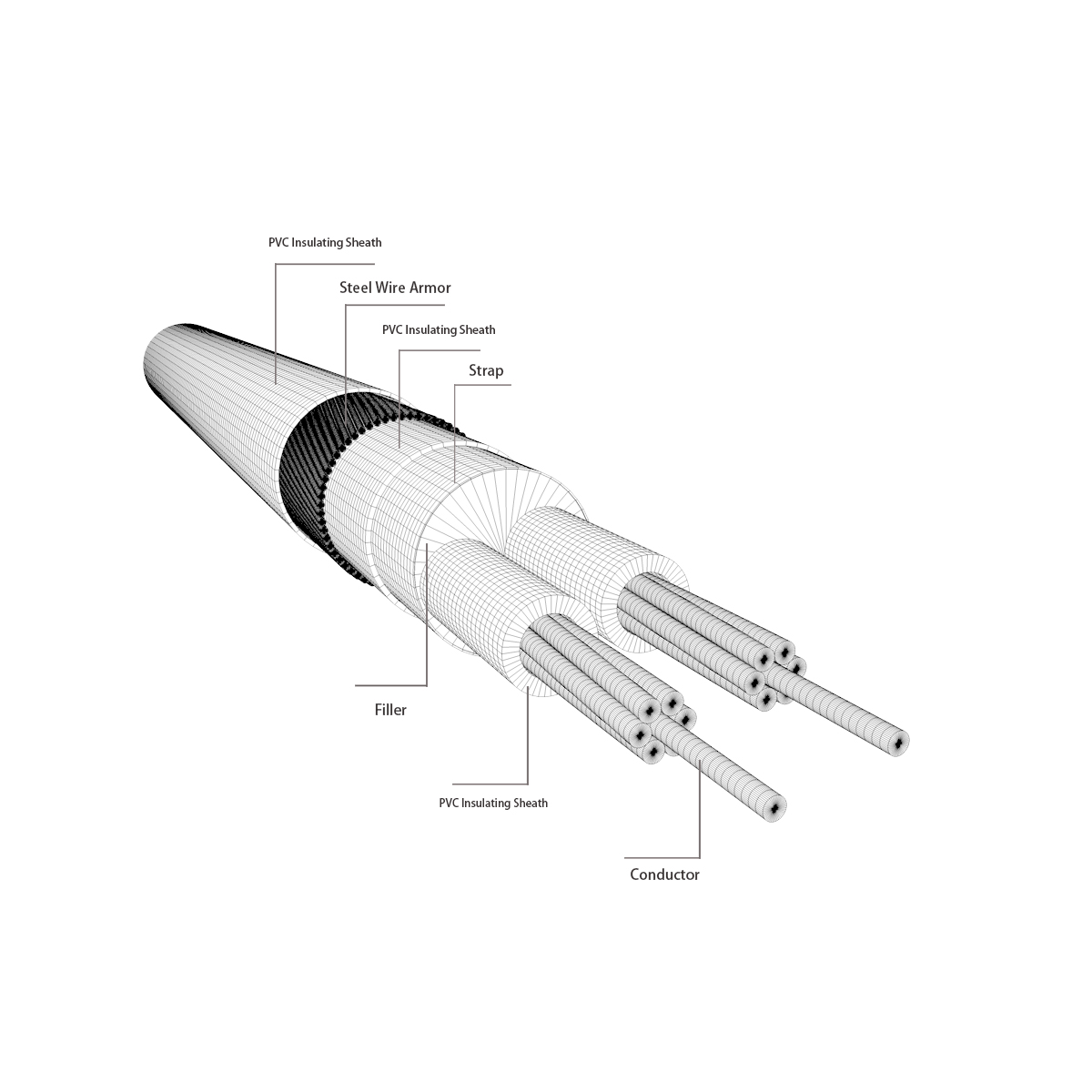

The general product structure diagram is as follows (NYY)

Conductor 2. Insulation 3. Filling 4. Taping 8 Sheath

Performance

Number of Cores and Nominal Area Nominal thickness of insulation
Phase
Nominal thickness of insulation
Earth/Neutral
Approx. Overall Diameter & Weight
Copper
Approx. Overall Diameter & Weight
Copper
Approx. Overall Diameter & Weight
Aluminium
Approx. Overall Diameter & Weight
Aluminium
Max. DC Resistance at 20℃
Copper
Max. DC Resistance at 21℃
Aluminium
Recommending Current Rating A
Copper
Recommending Current Rating A
Copper
Recommending Current Rating A
Aluminium
Recommending Current Rating A
Aluminium
Nos×mm2mmmmOverall
Dia. mm
Weight kg/kmOverall
Dia. mm
Weight kg/kmOhm/kmOhm/kmIn
Ground
In
Air
In
Ground
In
Air
3×2.5+1×1.50.80.811.9202--7.41-3121124.416.7
3×4+1×2.51.0 0.813.828713.81964.617.4140293222
3×6+1×41.0 1.0 15.238015.22483.084.6150364129
3×10+1×61.0 1.0 17.153917.13151.833.0869515339
3×16+1×101.0 1.0 19.177219.14111.151.9189676952
3×25+1×161.21.0 21.1113121.15630.7271.20 117858967
3×35+1×161.21.0 23.0 142623.0 6780.5240.86813810510682
3×50+1×251.41.226.5195326.59160.3870.641164128127100
3×70+1×351.41.230.0 268630.0 11940.2680.443207161159128
3×95+1×501.61.433.3364533.315920.1930.32244205196155
3×120+1×701.61.436.6460136.619520.1530.253275233217183
3×150+1×701.81.439.8549439.823370.1240.206318272244211
3×185+1×952.0 1.644.3694344.329230.09910.164355311275239
3×240+1×1202.21.649.8897449.837230.07540.125413372318289
3×300+1×1502.41.854.91109654.945540.06010.100 461416360327
3+1 Cores, Copper Conductor, PVC InsulatedPower Cable
Number of Cores and Nominal Area Nominal Thickness of Insulation Approx. Overall Diameter & Weight
Copper
Approx. Overall Diameter & WeightApprox. Overall Diameter & Weight
Aluminium
Approx. Overall Diameter & WeightMax. DC Resistance at 20℃
Copper
Max. DC Resistance at 21℃
Aluminium
Recommending Current Rating  A
Copper
Recommending Current Rating  A
Copper
Recommending Current Rating  A
Aluminium
Recommending Current Rating  A
Aluminium
Nos×mm2mmOverall
Dia. mm
Weight kg/kmOverall
Dia. mm
Weight kg/kmOhm/kmOhm/kmIn
Ground
In
Air
In
Ground
In
Air
4×1.50.814.7360--12.1-2317--
4×2.50.815.742715.0 3657.4112.131212417
4×41.0 17.856015.6 4614.617.4140293222
4×61.0 19.167516.95343.084.6150364129
4×101.0 21.0 88818.86371.833.0869515339
4×161.0 23.3117921.17811.151.9189676952
4×251.224.7150625.58800.7271.2117858967
4×351.227.1193127.310660.5240.86813810510682
4×501.430.9272629.915550.3870.641164128127100
4×701.434.7365534.519600.2680.443207161159128
4×951.639.2485238.525050.1930.32244205196155
4×1201.642.4590042.129330.1530.253275233217183
4×1501.846.4717046.136250.1240.206318272244211
4×1852.0 50.9882451.0 42460.09910.164355311275239
4×2402.256.91129157.252840.07540.125413372318289
4×3002.462.21386662.363580.06010.1461416360327
4×4002.669.0 1749169.778410.0470.0778----
Four Cores,Copper Conductor,PVC Insulated STA Power Cable
Nominal Cross
Section mm
Nominal Thickness of Insulation mmApprox. Overall Diameter & Weight
Copper
Overall
Dia. mm
Approx. Overall Diameter & Weight
Copper
Weight kg/km
Approx. Overall Diameter & Weight
Aluminium
Overall
Dia. mm
Approx. Overall Diameter & Weight
Aluminium
Weight kg/km
Max. DC Resistance at 20℃
Copper
Ohm/km
Max. DC Resistance at 21℃
Aluminium
Ohm/km
Recommending Current Rating  A
Copper
In
Ground
Recommending Current Rating  A
Copper
In
Air
Recommending Current Rating  A
Aluminium
In
Ground
Recommending Current Rating  A
Aluminium
In
Air
4×1.50.818.3705--12.1-2317--
4×2.50.819.379818.0 7317.4112.131212417
4×41.0 19.886619.17664.617.4140293222
4×61.0 21.1100420.38673.084.6150364129
4×101.0 23.0 125422.310041.833.0869515339
4×161.0 26.7167624.512721.151.9189676952
4×251.226.9195427.513290.7271.2117858967
4×351.229.1241129.515460.5240.86813810510682
4×501.433.1328532.921140.3870.641164128127100
4×701.436.9428236.725880.2680.443207161159128
4×951.642.6594240.535960.1930.32244205196155
4×1201.645.6706145.340930.1530.253275233217183
4×1501.849.6844450.0 47990.1240.206318272244211
4×1852.0 54.11021954.256410.09910.164355311275239
4×2402.260.11284960.468430.07540.125413372318289
4×3002.466.91636165.788540.06010.1461416360327
4×4002.673.72025274.2106020.0470.0778----
Four Cores,Copper Conductor,PVC Insulated SWA Power Cable
